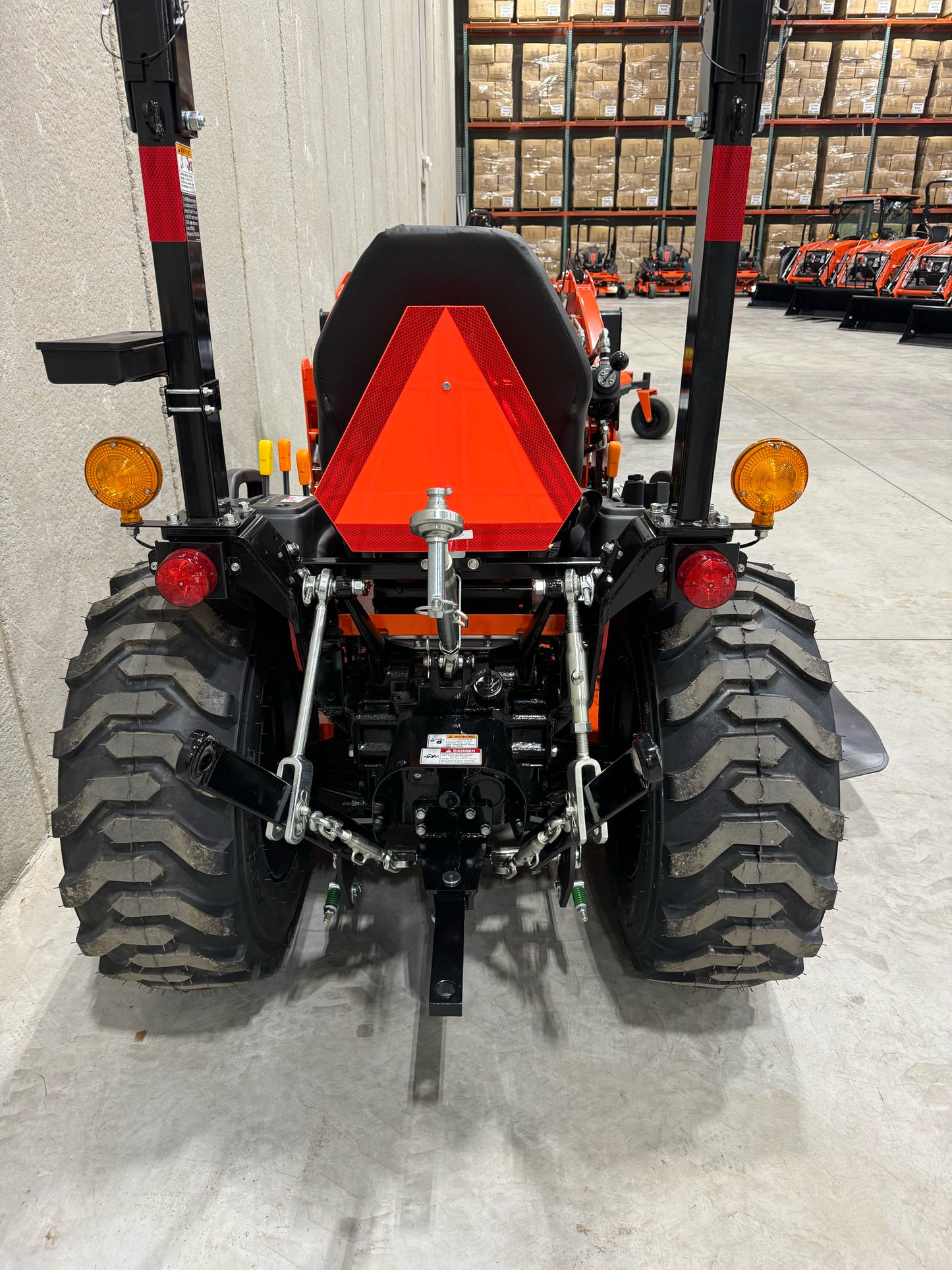

1025H - 10 SERIES, 24 HP W/ 105 LOADER
1025H - 10 SERIES, 24 HP W/ 105 LOADER
MAJOR POWER. SUB-COMPACT SIZE.
Although the Bad Boy 1025 Sub-Compact Tractor is smaller in size, it's big on power. This sub-compact tractor can squeeze into barn stalls, through gates and into tight spaces where bigger tractors just won't fit. But it still has the strength to get any job done. It's driven by a powerful 25-horsepower engine. Plus it features the same Hydro Max Transmission as our bigger Bad Boy Tractors, giving you the power to automatically increase engine RPMs evenly with the push of a pedal. This 2-range transmission can be set to low for work and high for transport. So if you're a small landowner and need a do-it all tractor, the Bad Boy 1025 is ready to outperform anything in its class, at a price that's even tougher to beat.
BAD BOY STRONG
The Bad Boy 1025 Tractor may be smaller in size, but it delivers the same power, strength and quality Bad Boy is known for. Born and bred for hard work, it has 992 pounds of loader lift capacity. In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction. The power steering and cruise control make getting around easy and effortless. And this tractor is made with Bad Boy steel, including the full metal hood. You can also feel confident about the quality – this Bad Boy comes with a 7-year powertrain warranty. If you want value, this little tractor comes up big.
1025 POWER TRAIN
- Engine: 3 Cylinder, Water-Cooled, Diesel
- Engine HP @ RPM: 24.6
- Displacement (in): 77.3
- Number Of Cylinders: 3
- Fuel Tank (gal): 5.8
1025 DRIVE TRAIN
- Transmission: HST
- Number Of Speeds: 2 Range
- Clutch: No
- Brakes: Wet, Multi-Disc
1025 PTO
- Type: Independent
- Rear(Mid) PTO Speed: 540 (2,000)
- PTO HP : 18.8
1025 HYDRAULICS
- Type: Power Assisted Hydro-Static
- Total Hydraulic Flow (Power Steering + Implement): 7.0 (2.8+4.2) / 25.7 (10.5+15.8)
- 3-Point Hitch: Cat 1
-
3-Point Hitch Lift Capacity @ 24" Behind Lift Point: 450
1025 ELECTRICAL
- Battery: 12 V, 500 CCA
- Alternator: 12 V, 40 A
1025 DIMENSIONS
- Overall Length Inches : 104"
- Overall Width Inches: 45.8"
- Overall Height Inches: 91.3"
- Wheelbase Inches: 57.5"
- Minimum Ground Clearance Inches: 9.4"
-
Weight lbs: 1,638
1025 WHEELS & TIRES
- IND (Front): 23X8.50-12
- IND (Rear): 12-16.5
1025 LOADER - MODEL BBL105
- Standard Bucket Size (in): 50"
- Maximum Lift Height (in): 75.5”
- Dig Depth (in): 4.6”
- Lift Capacity To Full Height At Pivot Pin (lbs): 992
- Breakout Force (lbs): 1,531
- Shipping Weight (lbs): 573
1025 BACKHOE - MODEL BBH105
- Standard Bucket Size (in): 12"
- Type: Sub-frame Mounted, Quick Attach
- Maximum Dig Depth (in): 76"
- Dig Force Bucket (lbs): 2.020
- Shipping Weight (lbs): 816
Collapsible content
MAINTENANCE TIPS
The first service for your Bad Boy Tractor is due at 50 hours. This is one of the most importnat services that your new tractor will receive. This service includes changing all fluids and filters as well as re-torquing bolts, lug nuts and many other items. This can be done on your own or by a local mechanic with mechanical knowledge.
Proper care and maintenance add to the longevity of your new tractor.
Our delivery specialist will go over the required maintenace when your tractor is delivered.
Delivery
Our tractor delivery expert delivers your tractor and goes over the features, benefits, functions, proper maintenance, and operation in person for the best ownwership experience possible.
This exclusive service is included in the $495.00 delivery fee.
